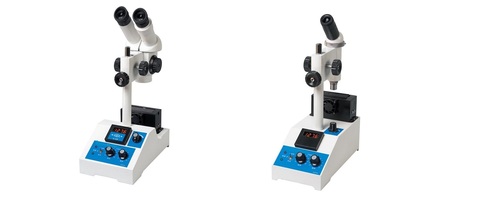

DURO LAB 432WRS 1C MELTING POINT APPARATUS

DURO LAB 432WRS 1C MELTING POINT APPARATUS

Characteristics:

Measurement of melting point is one of the important methods of measurement of purity.
To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
Use PID & PWM to control the temperature
Automatically records the melting curve
It can measure three samples at the same time and calculate average value of initial and final melting points automatically.
Touch Screen
USB and RS232

Specifications

Melting-point measurement range: room temperature  400 C
Setting rate of the starting temperature:
 50-400 no more than 5 mins; 400-50 no more than 7 mins
Minimum digital display: 0.1 C
Size of the capillary: 1.4mm(outside diameter)1.0mm(inside diameter), 80mm
Loading height of the sample: 3mm
Linear heating-up rate: 0.1 C -20 C /min
Repeatability: 0.3 C
Accuracy: 200 C : 0.5C;  200 C: 0.8C
