SODIUM ANALYZER

Product Description

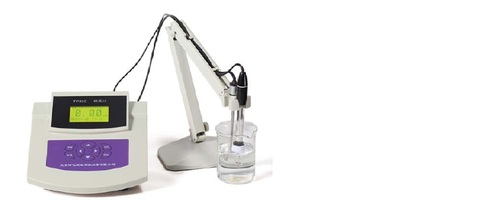

Product nameNACTP330 Benchtop Sodium Meter
Product CategorySodium Meter
ModelNACTP330

Applications
Power
Chem. or Petrochemical
Research Institute and Universities
Features
HIGH PRECISION ELECTRODE---Ensure accurate and fast
SMT AND INTEGRATIVE DESIGN---Enhance performance
and reliability
ADVANCED EMBEDDED MCU TECHNOLOGY ,Highperformance
and low consumption
24 bits A/D Signal acquisition ensure reliable and accurate
measurement.
simple and intuitive Chinese menu screenEasy-to-operate

Data cycle storage function, automatic clearing overflow
data---easy to operate and refer. allow data can be stored up to
10 years when power off.
Specifications
Display 12864 dot-matrix LCD, Chinese display
Measurement
Range (0.00~8)pNa, (0.23ug/L~23.0g/L)
Resolution 0.1ug/L
Accuracy 2ug/L or 0.03 pNa choose the largest
Stability 0.01pNa/4h
Repeatability 1%
Input Impedance11012
Temperature Range (0.0 to 60.0)C
Response Time (T90) 23min at 25C
Temperature Sensor: Pt1000
Temperature Compensation (0.0 ~ 60.0)C
Sample Temperature (5 ~ 60)C
Ambient Temperature (5 ~ 45)C
Ambient Humidity 90%RH (no condensation)
Storage Temperature (-25 ~ 55 )C (above 0C for electrode)
Power Supply AC(165-265)V (501)Hz
Power Consumption 5W
Overall Dimension (mm) 210(L) 200(W) 75(H)
Weight 1.2KG
Warranty 12 months(from date of acceptance)

Item Specification AND Quantity Remark
1 Sodium Meter NACTP330 1 piece
2 Standard solutionof sodium 1 bottle 200mg/L
3 Complex electrode of sodion 330-003 1 piece
4 Temperature electrode pNa 1 piece Pt1000
5 Electrode holder 1 set
6 Manual NACTP330 1 piece
7 Certificate ofinspection NACTP330 1 piece
