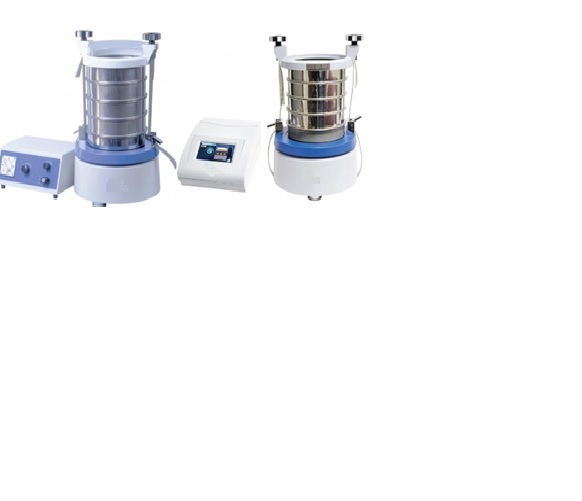

Sieve Shaker -Electromagnetic

Sieve Shaker -Electromagnetic

5500.0 INR/Piece
Get a Price/Quote

Product Details:

  • Shape Rectangular
  • Features Noiseless operation, Programmable timer, Uniform vibration, Low Maintenance, Robust Construction
  • Accuracy Highly Accurate Particle Separation
  • Power Supply Electric
  • Control Type Digital Control Panel
  • Display Type Digital Display
  • Speed Range Variable, up to 3000 vibrations/min
  • Click to view more
Request To Call Back Send Inquiry
X

Sieve Shaker -Electromagnetic Price And Quantity

  • 1 Piece
  • 5500.0 INR/Piece

Sieve Shaker -Electromagnetic Product Specifications

  • Digital Control Panel
  • Digital Display
  • Variable, up to 3000 vibrations/min
  • 430 x 660 x 930 mm
  • Electromagnetic Sieve Shaker
  • Mild Steel, Stainless Steel
  • Automatic Sieve Shaker
  • Highly Accurate Particle Separation
  • Mild Steel / Stainless Steel
  • Electric
  • Noiseless operation, Programmable timer, Uniform vibration, Low Maintenance, Robust Construction
  • Holds up to 7 full-height or 13 half-height sieves
  • 250 W
  • Rectangular
  • 220-240 V, 50 Hz
  • Particle Size Analysis, Laboratory Testing
  • Approx. 40 kg
  • Below 60 dB
  • Accepts sieves up to 200 mm or 8 inches diameter
  • Quick-release, adjustable for different sieve numbers
  • Continuous or timed operation selectable
  • 0.1 - 3 mm, digitally adjustable
  • Up to 3 kg (depending on material and sieve size)
  • Up to 99 minutes with programmable intervals

Sieve Shaker -Electromagnetic Trade Information

  • 100 Piece Per Month
  • 7 Week

Product Description

Electromagnetic Sieve Shaker

Electromagnetic Sieve shakers are used to measure particle size as part of your research or quality control applications. Sieve shakers provide uniform motion to ensure the reproducible results

SALIENT FEATURES

SS-5T Touch Screen,

Digital Display SS-5M-Manaual - Knob control

Simple operation, No moving Parts Uniform & Controlled Vibration

Electronic control of amplitude and frequency.

Easy Sieves clamping system

Sieves not standard supply with machine, user have to buy separately as per their application and requirements

Sieves can use 200mm, height-50mm, the sieve should < 325 mesh (over 325 mesh, the machine cannot be used)

Compared with the traditional manual vibrator, it can greatly reduce the work intensity and improve efficiency.

MODEL

SS-5M

SS-5T

Operation Setting

Manual Knob Control

5 Touch Screen

Digital Display

NA

Yes

Vibration Type

Electromagnetic

Measuring Range

325 mesh

Vibration frequency

3000 times/min.50Hz, 6000 times/min.100Hz

Amplitude selection

0 3mm continuous adjustment

Number of Sieves can use

5-6

Vibration direction

Vertical Vibration

Number of Modes

3

Vibration modes

Fine vibration, Intermittent vibration, Continuous vibration

Time selection

0 60 min.by Knob

1 99 min.

Program Memory

No

Yes

Auto - off

Knob Type

Yes

Default Mode Selection

No

Yes

Control Unit Dimension(LxWxH)

265 200 130mm

205 280 125mm

Ambient Temperature

5 C - 35 C

Power

150 W

Power supply

AC 220V / 50-60Hz

Shaking unit

300210mm

Packing Dimension (LxWxH)

600 390 400mm

Net Weight

22kg

Weight

24.5kg

Packing Type

Cardboard Carton Packing



Highly Accurate Particle Separation

Benefit from uniform electromagnetic vibrations and precise digital controls, ensuring reproducible results every time. The programmable timer and wide amplitude range enable user-defined settings tailored to specific materials. Experience consistent, high-accuracy particle separation, suited for a wide range of laboratory testing and industrial applications.


Effortless Operation and Maintenance

The sieve shaker features a quick-release clamping system for fast and easy installation or removal of sieves, minimizing downtime. The low-noise operation (below 60 dB) and the sturdy construction with low maintenance requirements make it ideal for continuous or staged laboratory use. Designed with user convenience in mind, the digital panel allows for seamless operation and monitoring.

FAQ's of Sieve Shaker -Electromagnetic:


Q: How do I set up and operate the electromagnetic sieve shaker for laboratory testing?

A: Place the unit on a stable surface, connect to a 220-240V power supply, and insert up to 7 full-height or 13 half-height compatible sieves (max diameter 200 mm). Use the quick-release clamps to secure the sieves, add your material (up to 3 kg), set your desired vibration amplitude (0.1-3 mm) and timer (up to 99 minutes) via the digital control panel, then choose between continuous or timed operation modes. Start the shaker with a simple panel command.

Q: What materials and industries is this sieve shaker suitable for?

A: This automatic sieve shaker is ideal for laboratory particle size analysis across industries like pharmaceuticals, chemicals, minerals, food processing, and construction. It is compatible with both mild steel and stainless steel sieves, making it suitable for different sample materials and laboratory standards in India and globally.

Q: When should I use the programmable timer and interval settings?

A: The programmable timer (up to 99 minutes) and interval settings are recommended when conducting standardized tests or repetitive sieving cycles, ensuring uniform exposure and freeing up laboratory personnel for other tasks. These settings also enhance accuracy in particle separation for research and quality control.

Q: Where can the sieve shaker be installed, considering its size and operating noise?

A: Given its compact rectangular dimensions (430 x 660 x 930 mm) and noise level below 60 dB, this shaker can be conveniently installed in laboratories, research facilities, or industrial testing rooms without causing disruption, even in noise-sensitive environments.

Q: What is the process for changing sieve stack configurations?

A: Simply unlatch the quick-release adjustable clamps, remove the current sieves, and insert the required number of sieves (full or half height). The clamping mechanism adapts instantly to different sieve numbers, streamlining workflow and reducing handling times.

Q: How does uniform vibration benefit particle separation accuracy?

A: The electromagnetic operation provides consistent, uniform vibrations across the entire stack, minimizing human error and maximizing separation efficiency. The adjustable amplitude (up to 3 mm) further allows fine-tuning for optimal resolution, ensuring highly accurate results for particle size analysis.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Lab Instrument' category

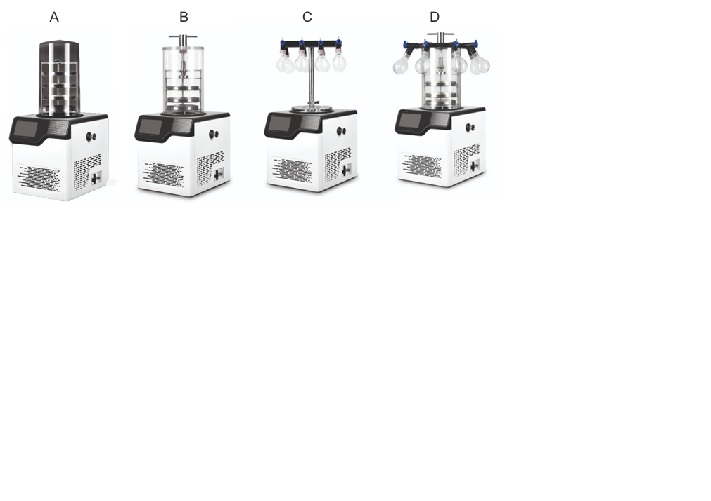

Lyophilizer Laboratory
Send Inquiry

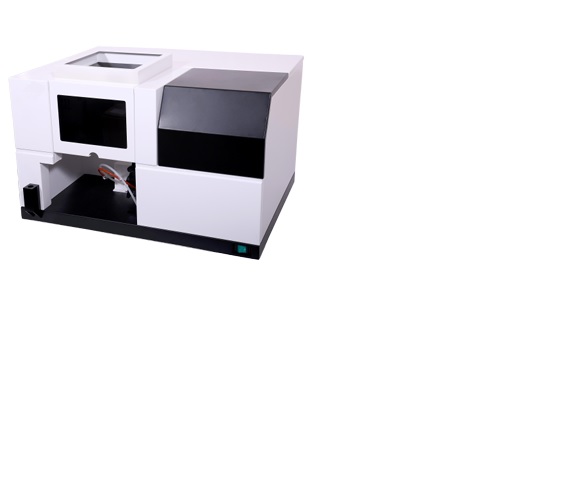

Atomic Absorption Spectrophotometer (Automatic) AAS8A
